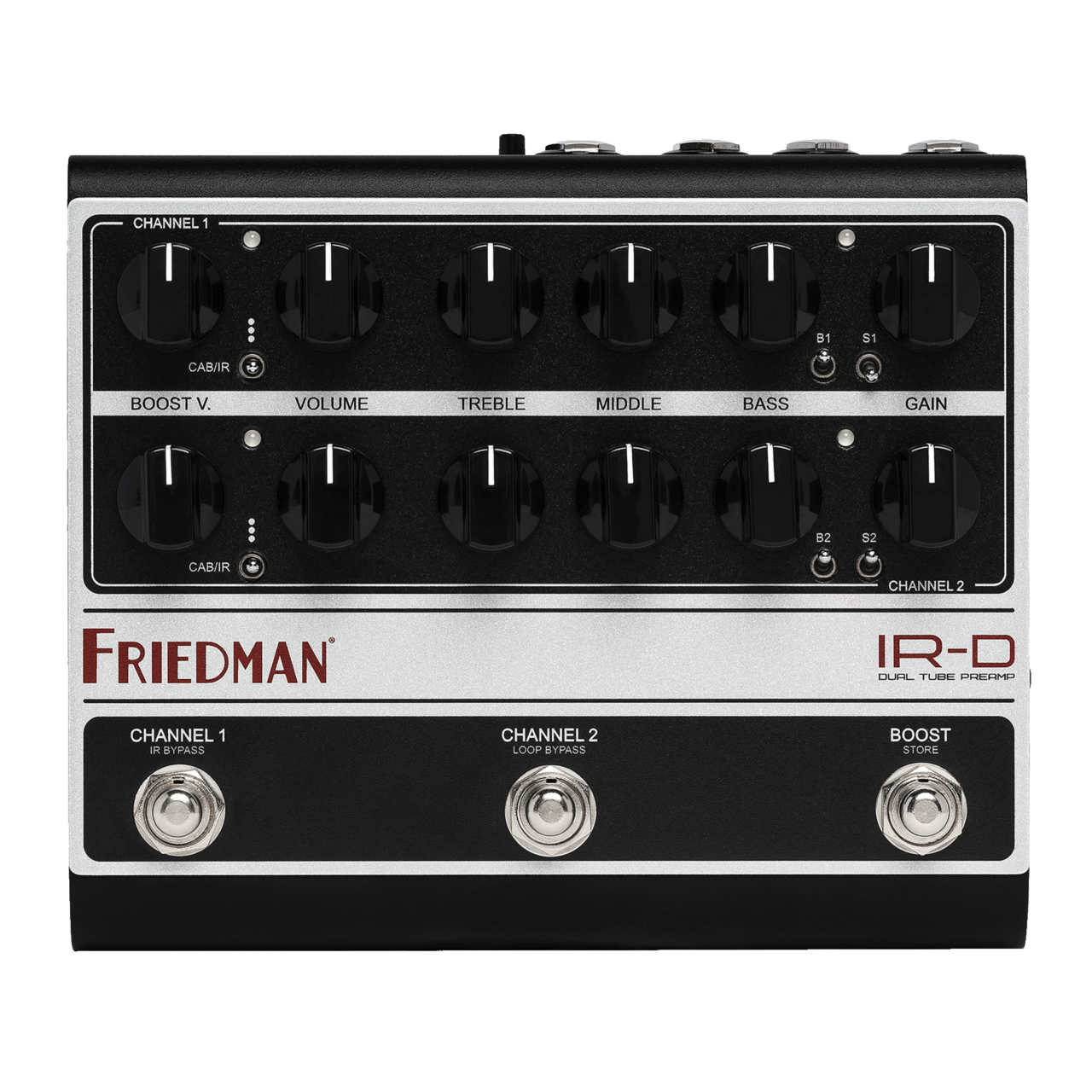

Friedman IR-D Dual-Channel Tube Preamp Pedal

Vintage-Inspired British Tone with Modern Direct Flexibility

The Friedman IR-D is a full-featured dual-channel tube preamp pedal designed for players seeking the legendary Friedman tone in a compact, pedalboard-ready format. Based on Dave Friedman’s modded JTM45 circuit, the IR-D channels the essence of his acclaimed Dirty Shirley and Twin Sister amps—delivering rich, touch-sensitive vintage British overdrive, dynamic cleans, and harmonically complex crunch tones.

Loaded with two high-voltage 12AX7 tubes, the IR-D offers true tube saturation and feel. Its intuitive interface includes dual identical channels, onboard TS-style boost, studio-quality impulse response cabinet simulation, and deep MIDI integration—making it an ideal rig solution for live performance, recording, and silent practice.

Key Features:

• True High-Voltage All-Tube Preamp
  Dual-channel architecture driven by 2 x 12AX7 tubes for authentic Friedman tone and amp-like response.

• Inspired by Friedman’s Dirty Shirley / Twin Sister
  Delivers harmonically rich overdrive, bold mids, and classic British character.

• Two Fully Independent Identical Channels + Boost
  Each channel features its own gain, volume, full 3-band EQ, boost with dedicated gain/volume, and flexible tone switches for total tonal control.

• TS-Style Per-Channel Boost
  Adds extra grit or volume for leads—adjustable via Boost Volume and Gain knobs.

• Low-Latency IR Cabinet & Power Amp Simulation
  Three selectable IRs per channel (programmable), with 13 premium Friedman IRs included and user IR support.

• Advanced Tone Shaping

  • 2-Way Bright Switch: Tailors top-end response.

  • 3-Way Structure Switch: Adjusts gain structure per channel.

  • Software-Editable Presence and Thump Controls via USB editor.

• Full MIDI Integration
  Control channel switching, boost, FX loop, IR selection, and tone shaping via standard 5-pin MIDI or USB.

• Ultra-Transparent Effects Loop
  Series FX loop (bypassable), ideal for integrating pedals with minimal tone coloration.

• Pro Connectivity
  Balanced TRS DI out, headphone output, USB MIDI, and 5-pin MIDI for seamless integration into studio and live setups.

  Specifications:

  • Tubes: 2 x 12AX7 (High-voltage)

  • Channels: 2 Identical Independent Channels + Boost

  • EQ (Per Channel): Bass, Middle, Treble

  • Boost Controls (Per Channel): Boost Volume, Boost Gain

  • Additional Tone Shaping:

    • 2-way Bright Switch

    • 3-way Structure Switch

    • 3-way Thump & Presence (software adjustable)

  • Impulse Response:

    • 13 Friedman IRs included

    • Load user IRs

    • 3-position CAB/IR selector per channel (software programmable)

  • Outputs:

    • TRS Balanced Out

    • Headphone Output

  • Footswitches: 3 multifunction (Channel, Boost, FX Loop)

  • Software Editor: USB-connected, powered by Synergy

  • Power Supply: Universal 12V Adapter (included)

  • USB Cable: 6 ft USB 2.0 A to B cable included

  • Dimensions: 5.5” (D) x 6.5” (W) x 2.3” (H)

  • Weight: 1.5 lbs

The Friedman IR-D bridges the warmth and depth of classic British tube amps with the convenience and flexibility of modern digital integration. Whether you’re performing, recording, or rehearsing, this is the ultimate all-tube preamp for vintage tone lovers in a modern world.
